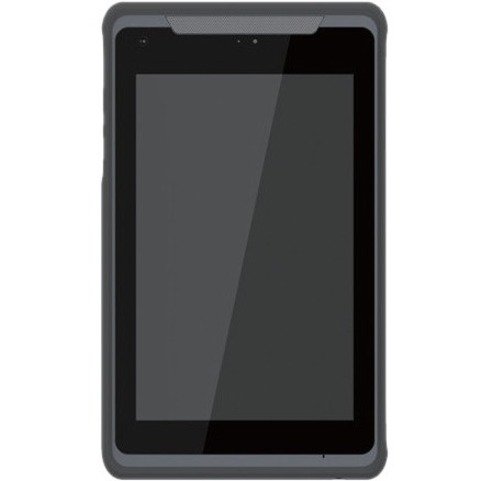

Advantech AIM-75S Rugged Tablet - 8" WUXGA - Qualcomm Snapdragon 660 - 4 GB - 64 GB Storage - Android 10 - 4G - Dark Grey ...Read More
Advantech AIM-75S Rugged Tablet - 8" WUXGA - Qualcomm Snapdragon 660 - 4 GB - 64 GB Storage - Android 10 - 4G - Dark Grey - Kryo 260 Octa-core (8 Core) 2.20 GHz - Upto 2 TB Memory Card Supported Capacity - microSD Supported - 1920 x 1200 - In-plane Switching (IPS) Technology Display - Cellular Phone Capability - LTE - 5 Megapixel Front Camera - 12 Hours Maximum Battery Run Time Less
By:Advantech
VPN: AIM-75S-611S10 SKU: 5283940
Description

Advantech AIM-75S Rugged Tablet - 8" WUXGA - Qualcomm Snapdragon 660 - 4 GB - 64 GB Storage - Android 10 - 4G - Dark Grey - Kryo 260 Octa-core (8 Core) 2.20 GHz - Upto 2 TB Memory Card Supported Capacity - microSD Supported - 1920 x 1200 - In-plane Switching (IPS) Technology Display - Cellular Phone Capability - LTE - 5 Megapixel Front Camera - 12 Hours Maximum Battery Run Time

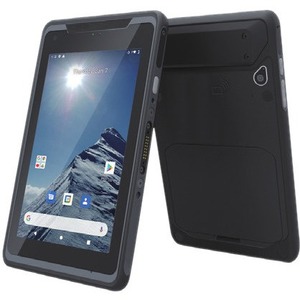

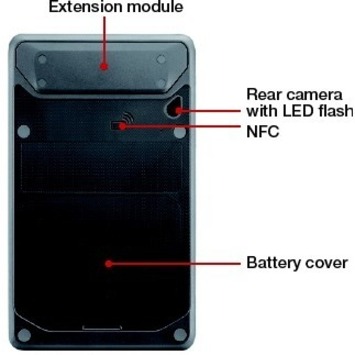

AIM-75 is an industrial-grade tablet equipped with IP65-rated protection from water and dust ingress and a swappable battery that supports up to 12 hours of operation, making it suitable for diverse indoor and outdoor vertical applications. In addition to WLAN/LTE capabilities that enable mobile computing, AIM-75 can be integrated with optional peripherals such as a 1D/2D barcode scanner, LAN+COM, UHF RFID, and MSR modules to support a wide range of operations in the manufacturing, warehouse, retail, and field service industries. Moreover, AIM-75S is equipped with Advantech's DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.

Features
  • Equipped with DeviceOn/iService software for remote device management
  • Qualcomm® Snapdragon™ 660 with Android 10 operating system
  • Certified for Google Mobile Services for downloading apps and APIs
  • 8" LCD with 400-nit brightness, 1920 x 1200 resolution
  • Corning® Gorilla® Glass 3 touchscreen supports gloved and stylus operation
  • IP65-rated protection from water and dust and 4-ft drop tolerance
  • LTE, WLAN, Bluetooth, NFC, and GIS capabilities

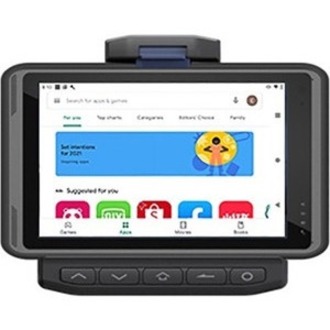

  • Optional peripherals include 1D/2D barcode scanner, LAN+COM, UHF RFID, and MSR modules

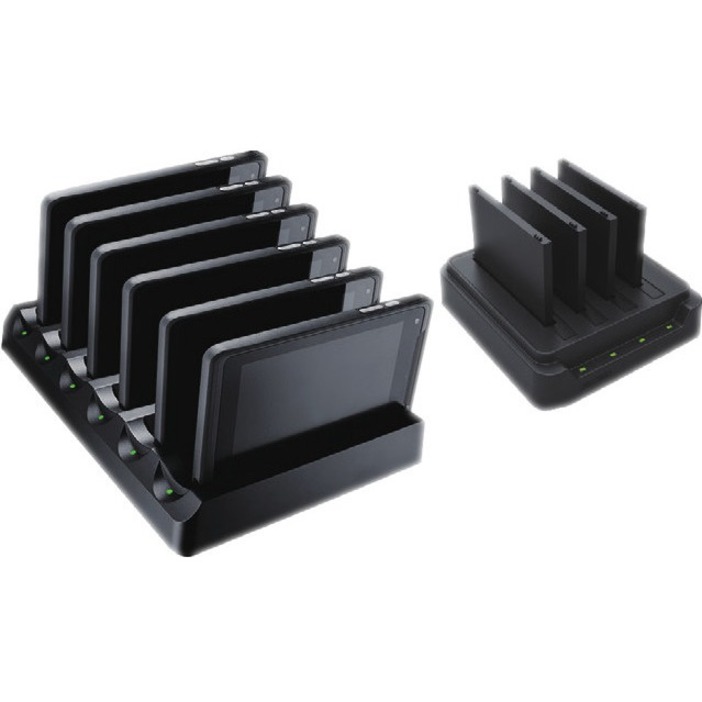

  • Multi-bay charging and docking stations ensure easy installation in diverse environments
Guides & Documents
Storage
Flash Memory Capacity64 GB
Battery Information
Battery Capacity4900 mAh
Maximum Battery Run Time12 Hours
Chipset
Chipset ManufacturerQualcomm
Chipset ModelSnapdragon 660
Interfaces/Ports

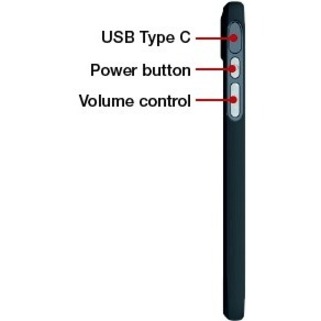

USB Type-CYes
USB Type-C Detail1 x USB Type-C 3.0
Operating System
Operating SystemAndroid 10
Operating System PlatformAndroid
Processor
Processor Speed2.20 GHz
Processor TypeKryo 260
Processor CoreOcta-core (8 Core)
Memory
Standard Memory4 GB
Memory TechnologyLPDDR4X
Memory Card SupportedmicroSD
Memory Card Supported Capacity2 TB
Display & Graphics
Aspect Ratio16:10
Screen Resolution1920 x 1200
Screen Size8"
Screen ModeWUXGA
Display Screen TypeLCD
Display Screen TechnologyIn-plane Switching (IPS) Technology
Network & Communication
BluetoothYes
Wireless LANYes
WWAN SupportedYes
Wireless LAN StandardIEEE 802.11a/b/g/n/ac/r/k/v
GPSYes
Cellular Data Connectivity TechnologyLTE
Near Field CommunicationYes
Cellular Generation4G
Cellular Network SupportedGSM
WCDMA

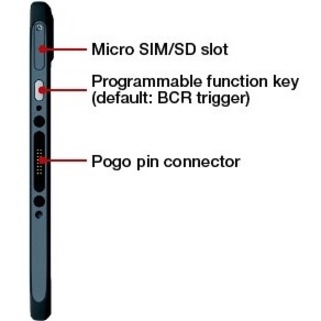

SIM Size SupportedMicro
Cellular Phone CapabilityYes
General Information
Product TypeTablet
Manufacturer Part NumberAIM-75S-611S10
Manufacturer Website Addresshttp://www.advantech.com
ManufacturerAdvantech Co., Ltd
Product ModelAIM-75S
Product NameAIM-75S Tablet
Brand NameAdvantech
Physical Characteristics
Weight (Approximate)600 g
Form FactorSlate
Height145 mm
Width240 mm
Depth142 mm
Product ColorDark Grey
RuggedYes
Built-in Devices
Focus ModesAuto-focus
Fixed Focus
Sensor TypeG-sensor
Gyro Sensor
eCompass
Ambient Light Sensor

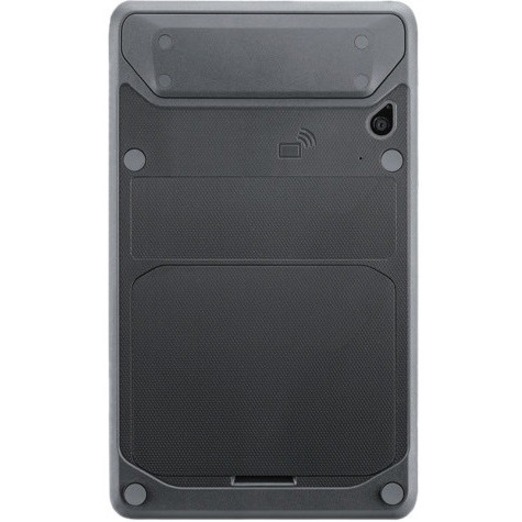

Rear CameraYes
Rear Camera Resolution8 Megapixel
Front CameraYes
Front Camera Resolution5 Megapixel
Miscellaneous
Package Contents
  • AIM-75S Tablet
  • 1 x AC/DC Adaptor
  • 1 x Power Cord TW
FeaturesShock Resistant
Vibration Resistant
Water Resistant
Glove Touch
GLONASS
Galileo
Dust Resistant
Beidou
Gorilla Glass 3
